How to Protect Walls and Pipes in a Sydney Car Park or Warehouse

At Uneek Metal Craft we manufacture and supply products from our factory in Arndell Park, Western Sydney. All of our products are designed and manufactured for Australian commercial and industrial use.

Western Sydney is currently experiencing an industrial boom, and it’s more important than ever to outfit your products from day one. This guide explains what each product does, where to install them, which finish to choose for your site and why.

Why Walls and Pipes Get Damaged in Sydney Warehouses and Car Parks

Modern warehouses and undercover car parks are busy places – and it’s all happening in a confined space. Forklifts zip down narrow aisles. Trucks lined up to loading docks. Pallet jacks and trolleys pivot around column corners. Drivers often miscalculate reversing distances by a few centimetres. And so, at every shift, columns, walls, and exposed pipes get damaged.

The Most Common Causes of Wall and Pipe Damage:

The SafeWork NSW Forklift Safety Report NSW has had 1,538 incidents related to forklifts from 2017 to 2022, averaging over 250 incidents per year. Blacktown, Parramatta and Outer West have all had the highest number of inspections. Additionally, these suburbs have a large amount of new industrial space due to the warehouse boom currently occurring in Western Sydney.

Other than forklifts; here are the other main causes of wall and pipe damage in Sydney‘s warehouses and parking structures:

• Reversing forklifts can clip column corners during tight turns in warehouse aisles.
• Delivery trucks often swing wide on entry and hit wall edges near loading dock openings.
• Pallet jacks and trolleys may strike exposed pipes at ground level and knee height when operators focus on their load.
• Car doors can swing into column corners in undercover car parks.
• Reversing vehicles might back into downpipes that run down the outside of basement car park walls.

Every one of these incidents causes damage that is entirely preventable with the right protection in place.

What Happens When a Forklift or Vehicle Hits an Unprotected Downpipe

Most PVC downpipes have a wall thickness less than 2mm – 4 mm, but can be damaged by a range of vehicles such as on a forklift which can weigh anywhere between 1–5 tonnes. Therefore if a vehicle or forklift impacts an unprotected downpipe, the predictable outcome is to either collapse or puncture through the instant damage point, resulting in roof and gutter water coming into the building rather than the water draining away. If that occurs during a heavy downpour in Sydney, where Western Sydney can receive an average annual rainfall of 800mm, flooding can happen in minutes.

The cost of restoring water damage in Sydney ranges from $2200 for a little Class 1 damage to over $16000 or more for extensive flooding with major damage to structural materials. Commercial properties with large floor areas will have significantly more restoration costs. Then consider emergency plumbing call-out fees, stock loss, business interruption, and possible excess from insurance; what could start as simply a crushed downpipe can quickly become a five-figure expense.

In comparison, galvanised downpipe protectors cost less than $200. Simple maths.

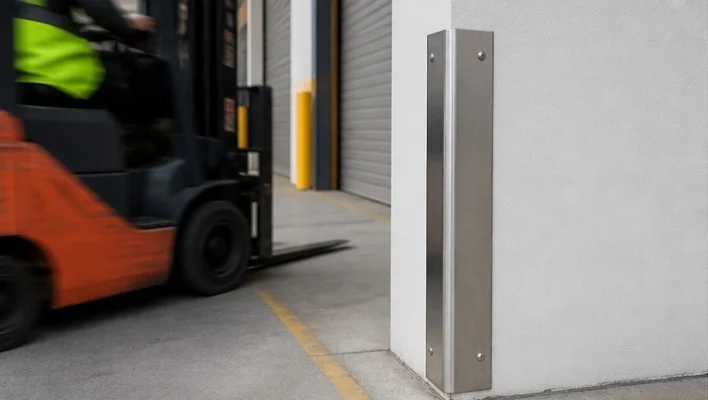

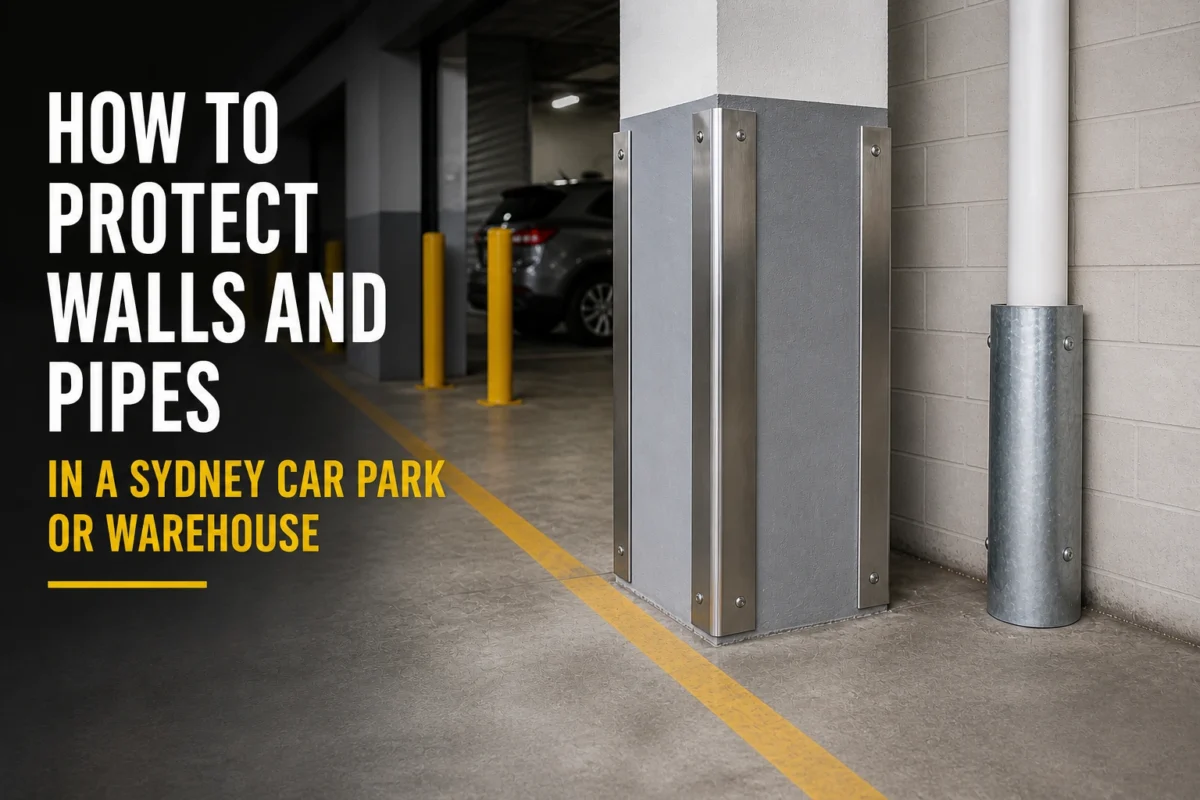

What Are Corner Guards and Where Should You Install Them?

Corner guards will provide protection for high traffic areas such as car parks, shopping centers, hospitals, factories, etc.. Vehicles, shopping trolleys, hospital beds, industrial trolleys and forklifts all have the potential to cause damage to walls. There are two main functions of corner guards. Firstly they provide protection for the building‘s main structure from being damaged due to repeated impacts.

This repeated low energy impact creates a level of cumulative damage to the structural integrity of exposed concrete corners over time. Secondly, they offer cars added protection from either panel damage or flat tires that is created by the exposed edges of concrete.

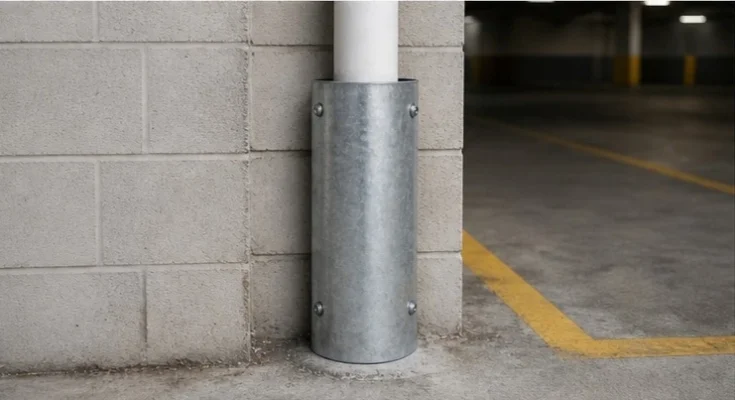

What Are Downpipe Protectors and When Do You Need One?

A downpipe protector is a heavy gauge steel shield that wraps around an exposed downpipe, cable conduit or service pipe and bolts to the adjacent wall surface. It creates a rigid steel barrier that absorbs and deflects impact energy that would otherwise be transmitted directly into the pipe by a vehicle or forklift.

Uneek MetalCraft supplies a 150mm galvanised steel downpipe protector made in Sydney to fit Australian standard downpipe diameters. Supplied with pre-drilled mounting holes for fast and simple fixing to existing concrete or masonry walls, no specialist tools required.

How Downpipe Protectors Stop Costly Plumbing Damage

Fortunately, all of these components can be protected with downpipe guards. The downpipe guard is a steel barrier that, when hit, deforms and absorbs the energy of the impact and leaves the downpipe that it protects undamaged. An example of a downpipe guard that was damaged because of a fork lift impact would not damage the downpipe that the guard protects; therefore it is far less expensive to replace a downpipe guard than it would be to have an emergency plumber, have a water damage restoration company repair your facility, and shut down your loading dock for repairs. All exposed downpipes that are subject to vehicle or fork lift travel should have downpipe guards installed.

The following list of downpipes should have priority:

• Stormwater down pipes on external walls of warehouse adjacent to vehicle access points
• Fire sprinkler risers adjacent to forklift aisles, a broken fire system pipe creates a flooding emergency and a building code compliance problem
• Power conduits at vehicle-level in loading dock walls
• Hydraulic pipes on dock levellers and bay equipment
• Gas meter connections and external service lines to commercial properties

Galvanised vs Powder-Coated Downpipe Protectors, Which Should You Choose?

Both finishes provide strong, durable protection. The choice comes down to visibility and environment:

Galvanised (raw finish):

• Provides excellent corrosion resistance straight out of the box
• Suits indoor warehouse applications where aesthetics are secondary
• You don’t have to pay as much money at the start, which is great if you’re doing a big project that involves lots of areas.

If you need to make something more visible later on, you can always paint it safety yellow on the spot. Powder-coated safety yellow:

• Maximises visibility for forklift operators and vehicle drivers, reducing the chance of secondary impact
• Suits car parks, loading dock areas, and any space where operator awareness of the protector’s location improves safety outcomes
• Preferred by SafeWork NSW inspectors when they assess traffic management compliance
• Adds a professional finish that signals a well-managed facility

For new warehouse fit-outs in Western Sydney, Uneek MetalCraft recommends powder-coated yellow on all external-facing downpipe protectors near vehicle access points, and galvanised protectors on internal service pipes that sit out of the main forklift travel path.

How Much Does Wall and Pipe Damage Actually Cost Sydney Businesses?

The direct repair costs matter. But the indirect costs are what truly hurt a business. Consider a single loading dock incident where a reversing truck crushes a PVC downpipe during a Sydney storm event:

By comparison, a Uneek MetalCraft downpipe protector costs just $180.

The math applies equally to corner guard damage. A cracked structural column corner in a car park triggers body corporate liability questions, insurance assessments, engineering inspections, and concrete repair work. Corner guards, therefore, eliminate that sequence entirely.

Need help figuring out what products are right for your space, or how many you should get? Simply get in touch with the Uneek MetalCraft team and we’ll take a look at your floor plan. We’ll give you some personalised advice on the best fit-out for you, so you can make an informed decision before spending any money.

A Complete Fit-Out Checklist: Corner Guards and Downpipe Protectors for Sydney Sites

Use this checklist when fitting out a new warehouse, industrial unit, or commercial car park in Sydney. Work through the site systematically before the facility opens, retrofitting protection after the first incident always costs more than installing it on day one.

New Warehouse Fit-Out Checklist

• Walk every aisle and mark every column corner that sits within 300mm of a forklift travel path
• Install corner guards on all marked column corners before racking goes in
• Identify all downpipes, conduits, and service pipes at vehicle height along loading dock walls
• Fit downpipe protectors to every exposed pipe within vehicle access zones
• Install corner guards at all loading dock wall edges and building entry/exit corners
• Confirm downpipe protectors cover fire sprinkler risers in compliance with building management requirements
• Choose powder-coated yellow protectors for any pipe or column corner in a primary forklift travel aisle Car Park Protection Checklist
• Survey every column in the car park and identify corners that drivers can reach from standard parking bays
• Install corner guards on all four corners of every structural column
• Identify downpipes running down the interior walls of basement or undercover levels
• Fit downpipe protectors on all exposed pipes at vehicle bumper height (approximately 400–900mm from ground level)
• Pay particular attention to columns at the ends of parking bays, these receive the highest frequency of door and bumper strikes
• Install corner guards at stairwell entrances and ramp wall edges where drivers approach at angle
• Check for electrical conduits and CCTV cable runs along car park walls and protect any that sit within vehicle reach

Australian Standards and Building Compliance for Wall and Pipe Protection

In Australia, there’s no hard and fast rule that says you have to have corner guards and downpipe protectors everywhere. Nevertheless, there are plenty of standards and rules that make it clear you have a significant responsibility to protect buildings and keep people safe when they’re moving around. This means that even though it’s not always mandatory, it’s still really important to think about using these kinds of protections to prevent accidents and damage.

 AS 2890.1:2004, The Australian Standard for off-street parking facilities sets out design and safety requirements for car parks, including obligations around protecting structural elements from vehicle impact. As a result, installing corner guards on columns directly supports compliance with the intent of this standard.

To keep people safe at work, there’s a law in New South Wales called the Work Health and Safety Act 2011. This law says that businesses and companies have a big responsibility to make sure their workers are safe and healthy. They need to find ways to get rid of or reduce risks that could hurt someone. In line with this,  A report by SafeWork NSW about forklift safety found that one of the main reasons for accidents with forklifts is not managing traffic well. This includes not keeping forklifts separate from buildings and other things that could get in the way.

Companies should utilize equipment designed to protect persons from accidents in complying with the rules and ensuring safety. Products such as downpipe protectors and corner guards are valuable tools to prevent someone from being injured. When companies use these safety precautions, they assist in ensuring that their employees remain safe. It is imperative that companies are cautious and anticipate potential problems by using proper safety equipment. This emphasis on safety becomes even more critical when dealing with forklifts since they may cause severe injury when not used safely. Therefore, companies must take this matter seriously and employ all aspects of safety for their employees.

Building Code of Australia (BCA):

Structural elements including columns must maintain their design load capacity. Progressive corner damage from repeated vehicle strikes can compromise this. Corner guards preserve the structural integrity of columns over their design life.

Insurance and liability:

Many commercial property insurers in Australia include clauses that reduce or deny claims for water damage where the property owner demonstrably failed to protect known exposure points. An unprotected downpipe in an active loading dock is a known exposure point.

Altogether, fitting corner guards and downpipe protectors is not just smart facilities management — it forms part of a documented risk mitigation strategy that protects your business legally and financially.

Get Corner Guards and Downpipe Protectors from Uneek MetalCraft in Sydney

Uneek MetalCraft manufactures and supplies corner guards and downpipe protectors from their facility in Arndell Park, NSW 2148 right in the heart of Western Sydney’s industrial precinct.

We ship all our products straight from Sydney, so you get them faster in places like Blacktown, Parramatta, Penrith, Liverpool, the Hills District, and the new Aerotropolis area. You don’t have to wait for weeks for stuff to come from other states. And we don’t make you buy a lot of something just to meet a minimum order. We just sell good, Australian-made products that protect things, at prices that are fair, and we have them ready when you need them for your project.

Products available from Uneek MetalCraft:

• Corner Guard – Stainless Steel – 100mm — $125.00 — View product →
• Downpipe Protector – 150mm — $180.00 — View product →

For bulk orders, project quotes, or advice on which products suit your specific site layout, get in touch with our Sydney team we’re based in Arndell Park and respond fast.

📞 0430 303 170 ✉️ info@uneekmetalcraft.com.au

📍 Unit 1, 9 McCormack St, Arndell Park NSW 2148
