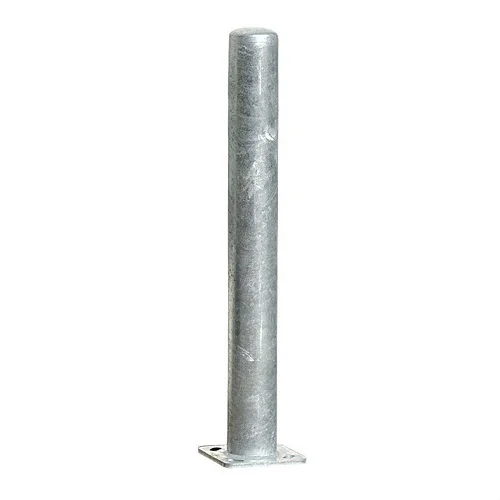

Galvanised Bollard Surface Mount 90mm x 900mm

The Galvanised Surface Mount Bollard 90mm x 900mm is the low-maintenance, long-life choice for outdoor and exposed environments where corrosion resistance matters most. Hot-dip galvanising bonds zinc into the steel surface, giving protection that outlasts paint or powder coat in coastal, industrial and high-UV conditions. The clean silver-grey finish suits architectural and commercial settings where a safety yellow bollard would look out of place.

No core drilling is required. The surface mount base bolts directly onto existing concrete slabs, which makes it ideal where the slab cannot be penetrated or where bollards are added after the pour. All fixings are included.

Where the galvanised 90mm surface mount bollard is used

• Car park bays, aisles and pedestrian walkways
• Warehouse aisles and racking end protection
• Loading dock entrances and roller door edges
• Shopfronts and footpath edges where core drilling is not possible
• Council, government and architectural projects that need a maintenance-free finish

Installation

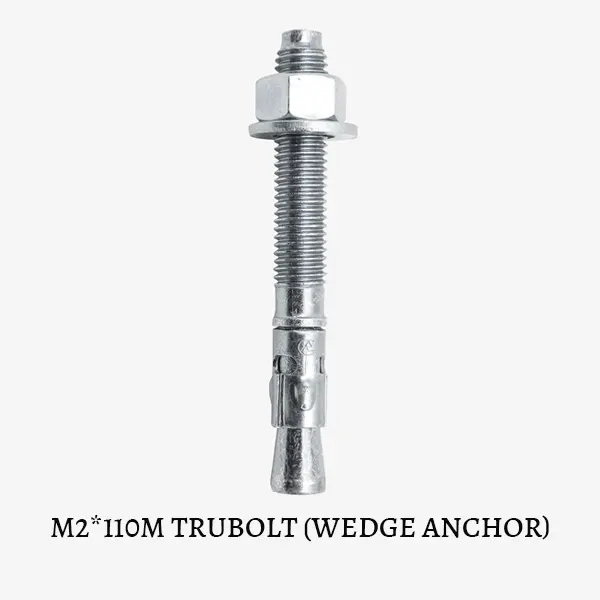

Mark the four base plate holes, drill 12mm holes into the concrete with a masonry bit, then fix with the supplied M12 x 110mm Trubolt wedge anchors and torque to the anchor manufacturer’s specification. Allow one person about fifteen minutes per bollard on a sound slab. Full method, tools and spacing advice are in our surface mount bollard installation guide.

Specifications

Frequently asked questions

Do I need to core drill to install the 90mm bollard?

No. This is a surface mount bollard. The 225mm base plate bolts to existing concrete with the four M12 x 110mm Trubolt wedge anchors supplied. You only need a hammer drill with a 12mm masonry bit. Follow our step-by-step surface mount installation guide for hole depth, torque and slab requirements.

Surface mount or in-ground: which is right for my site?

Surface mount suits existing slabs, suspended car park decks and any site where the concrete cannot be penetrated. In-ground bollards give higher impact resistance but need a core-drilled or cast footing. Our guide to in-ground versus surface mount bollards compares both.

How does hot-dip galvanising compare with powder coat near the coast?

Hot-dip galvanising bonds a zinc layer into the steel, so it does not chip, peel or fade the way paint does and it keeps protecting the steel even if the surface is scratched. For salt air, rooftops and unsheltered yards it is the longer-lasting finish. Our guide to metal finishes for coastal bollards explains the trade-offs.

Is a safety yellow version available?

Yes. The same 90mm x 900mm bollard is available in powder coated safety yellow with reflective tape for sites that need colour-coded traffic management.

What is the delivery time and cost?

Bollards are made in Sydney and ship Australia-wide. Freight is calculated at checkout by postcode. Bulk orders for car parks and warehouses can be quoted directly through the contact page.

Browse the full range of Australian-made surface mount bollards, or pair this bollard with stainless steel corner guards and downpipe protectors for complete wall and pipe protection.
